Press Shop Equipment

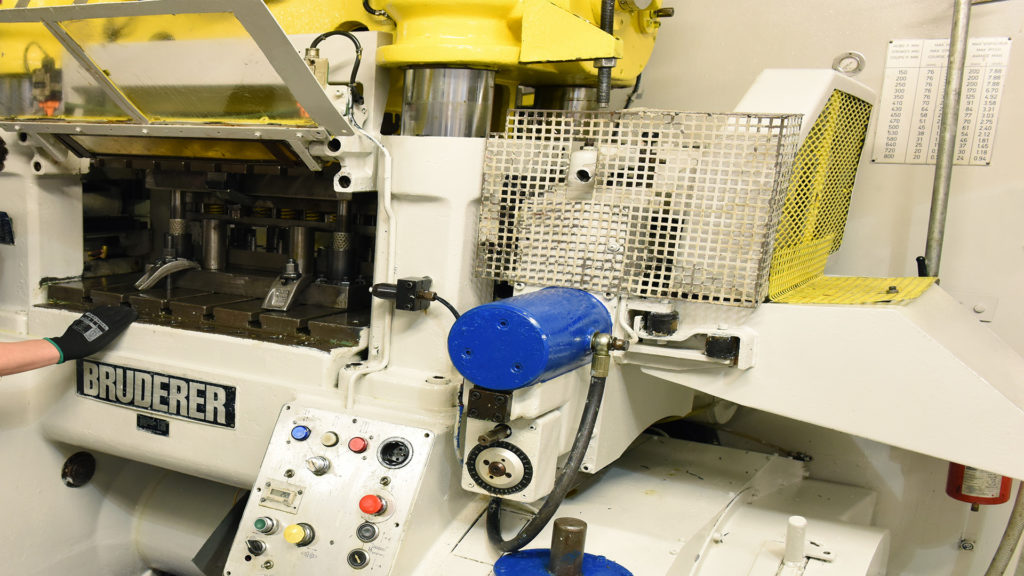

Bruderer BSTA 60H (x3)
We operate three Bruderer BSTA 60H high-speed progression presses, all recently serviced. With 60 tonnes of press force and Bruderer's BSTA (Bruderer Stamping Technology Advanced) drive system, they deliver exceptional accuracy, high stroke rates and minimal deflection for tight-tolerance progression tooling and long tool life.
3× in operation · Refs B3, B6, B7
| Press force | 60 tonnes |
|---|---|
| Press type | High-speed straight-side, 4-pillar (progression) |
| Speed range | 150 – 800 strokes/min |
| Stroke length | Variable (adjustable) |
| Bed sizes | 770 × 550 mm (B3), 620 × 620 mm (B6), 770 × 620 mm (B7) |
| Feed system | Coil feed |
| Max strip width | 500 mm |
| Max material thickness | 3 mm |
| Materials | Stainless steel, mild steel, aluminium, brass |
Machine specification — contact us to check suitability for your part, material and volumes.
Typical Applications
Let's Discuss Your Requirement
Talk to HT Brigham about your next pressing, tooling or assembly project.
Contact the Team
