Press Shop Equipment

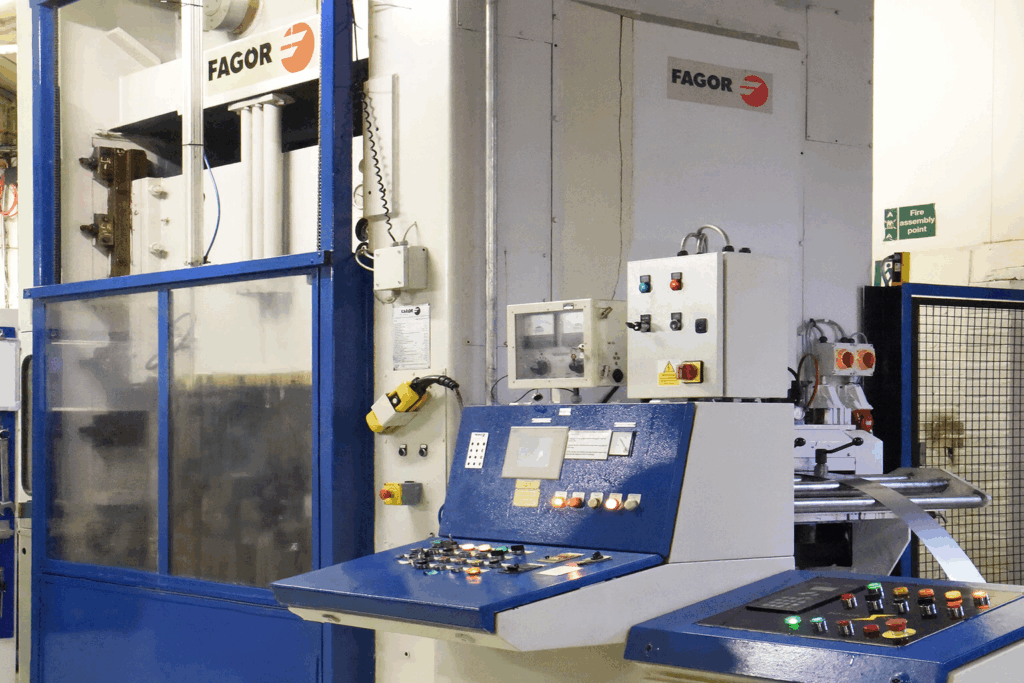

Fagor Model SEM 2-250
Our Fagor SEM 2-250 is a high-precision servo-mechanical press built for flexibility, speed and accuracy in demanding forming operations. With 250 tonnes of press force and advanced servo-drive technology, we can fine-tune the stroke profile for maximum productivity and tool life.
| Press force | 250 tonnes |
|---|---|
| Press type | Servo-mechanical |
| Speed range | 25 – 70 strokes/min |
| Bed size | 1800 × 1200 mm |
| Feed system | Servo roll feed |
| Max strip width | 600 mm |
| Max material thickness | 3.5 mm |
| Materials | Stainless steel, mild steel, aluminium, brass |
Machine specification — contact us to check suitability for your part, material and volumes.
Typical Applications
